USGS 435723092171801 WLN10 106N12W29ACCC 01 Marion CRN 0000817784

PROVISIONAL DATA SUBJECT TO REVISION

Click to hidestation-specific text
USGS Climate-Response Network (CRN) Well WLN10
County: Olmsted
Township: Eyota (T106N R12W)
Location: Southwest side of Marion Rest Area along I-90
Land-surface elevation: 1254.50 ±0.1 feet, NAVD88
Installation: 21 September 2016, for the Minnesota Department of Natural Resources

Well information
Depth: 99.15 feet
Open interval: 18–99.15 feet
Use: Monitoring, for the USGS National Groundwater and Streamflow Information Program and Monitoring for the Department of Natural Resources Cooperative Groundwater Monitoring (CGM) Program

Aquifer information
Type: Bedrock, unconfined, fractured carbonate
Thickness: 91 feet (9–100 feet, BLS)
Deposit: Limestone bedrock, Prosser and Cummingsville formations of Galena Dolomite of Ordivician Age


USGS logo This site is monitored as part of the USGS National Groundwater and Streamflow Information Program

This site is also monitored as part of the Minnesota Department of Natural Resources' Cooperative Groundwater Monitoring (CGM) Program.

Water level data collected during 26 Oct. 2016 to 20 Sept. 2018 were collected and published by the Minnesota Department of Natural Resources. These data were later archived and published in U.S. Geological Survey's National Water Information System (NWIS) database to lengthen the water level record for the U.S. Geological Survey's Climate-Response Network (CRN) Program. ,

Water levels below land surface are accurate to 0.01 feet. Water levels above North American Vertical Datum of 1988 (sea level) are calculated by subtracting recorded water levels from the land surface elevation, which is accurate to 0.1 feet based on a differential GPS survey. Water-level differences are accurate to within 0.01 feet.

Water temperature is accurate to plus-or-minus 0.1°C, and differences in temperature are accurate to 0.1°C

Precipitation is accurate to 0.01 inches except during freezing periods (about Dec. through early Apr.). The rain gage is unheated and uncovered. The precipitation data during freezing periods result from melting of snow (accumulated in the rain gage) during warm periods and do NOT represent actual precipitation. Precipitation totals during freezing periods may underestimate actual totals because the rain gage funnel may be full of snow (preventing further accumulation) or because snow in the funnel may sublimate instead of melt.

This station managed by the Mounds View Field Office.

Available Parameters Period of Record

2018-09-21  2024-04-25
2018-09-21  2024-04-25
2016-10-26  2024-04-25
2016-10-26  2024-04-25








 (365)


  -- or --






Summary of all available data for this site
Instantaneous-data availability statement


Temperature, water, degrees Celsius

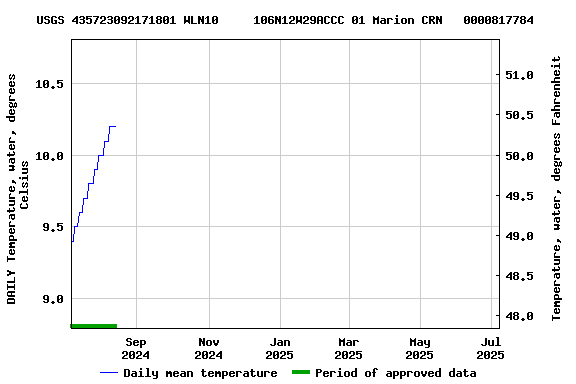

Graph of DAILY Temperature, water, degrees Celsius

Add up to 2 more sites and replot for "Temperature, water, degrees Celsius"

?



Create presentation-quality graph.


Precipitation, total, inches, [not accurate when freezing]

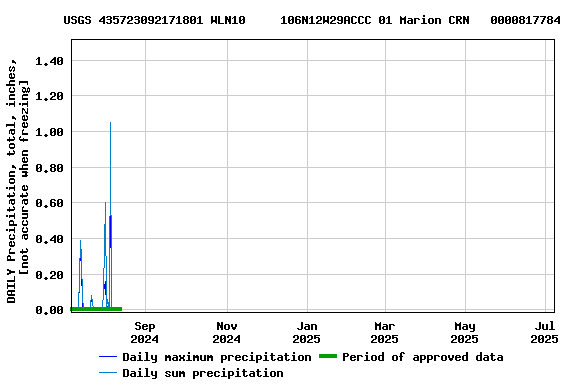

Graph of DAILY Precipitation, total, inches, [not accurate when freezing]

Add up to 2 more sites and replot for "Precipitation, total, inches, [not accurate when freezing]"

?



Create presentation-quality graph.


Groundwater level above NAVD 1988, feet

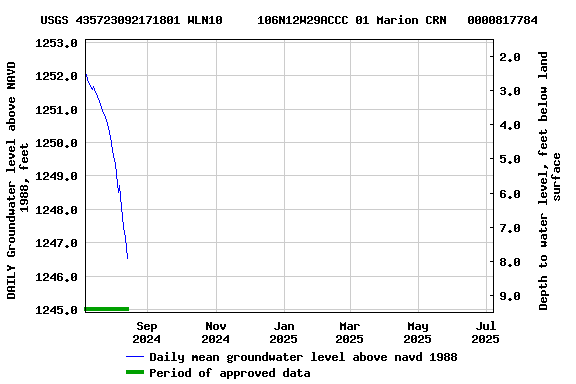

Graph of DAILY Groundwater level above NAVD 1988, feet

Add up to 2 more sites and replot for "Groundwater level above NAVD 1988, feet"

?



Create presentation-quality graph.


Depth to water level, feet below land surface

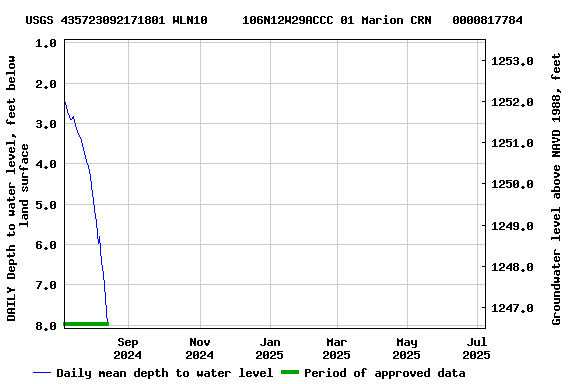

Graph of DAILY Depth to water level, feet below land surface

Add up to 2 more sites and replot for "Depth to water level, feet below land surface"

?



Create presentation-quality graph.
